Phongo Clap RT  1.0
Simple Raytracing Renderer
Public Member Functions | List of all members
Parser Class Reference

Reads from text file and iterates using boost tokenizer to "pickup" and store values based on syntax. More...

#include <Parser.h>

Collaboration diagram for Parser:
Collaboration graph

Public Member Functions

 Parser (std::string &_image_name, std::string &_text_file, int &_width, int &_height, float &_camPosX, float &_camPosY, float &_camPosZ, float &_lookAtX, float &_lookAtY, float &_lookAtZ, int &_max_depth, int &_anti_aliasing, std::vector< Light * > &_scene_lights, std::vector< geo::Shape * > &_scene_objects)
 Default constructor for the parser. More...

 ~Parser ()
 Default destructor for the parser. More...

void parseObjects (std::string &_text, std::vector< geo::Shape * > &_scene_objects)
 Read objects snippet of text and push elements to the object vector on the go. More...

void parseLights (std::string &_text, std::vector< Light * > &_scene_lights)
 Read objects snippet of text and push elements to the object vector on the go. More...

void parseSingleLight (std::string &_text_light, std::vector< Light * > &_scene_lights)
 Read the text line that defines a light and push it into the vector container. More...

void parsePlane (std::string &_text, std::vector< geo::Shape * > &_scene_objects)
 Read the text line that defines a plane and push it into the vector container. More...

void parseSphere (std::string &_text, std::vector< geo::Shape * > &_scene_objects)
 Read the text line that defines a sphere and push it into the vector container. More...


Detailed Description

Reads from text file and iterates using boost tokenizer to "pickup" and store values based on syntax.

Author
Ramon Blanquer
Todo:
Try to move all this to a .cpp file which I cannot manage to do... it says "multiple definitions"...

Definition at line 28 of file Parser.h.

Constructor & Destructor Documentation

Parser::Parser ( std::string &  _image_name,
std::string &  _text_file,
int &  _width,
int &  _height,
float &  _camPosX,
float &  _camPosY,
float &  _camPosZ,
float &  _lookAtX,
float &  _lookAtY,
float &  _lookAtZ,
int &  _max_depth,
int &  _anti_aliasing,
std::vector< Light * > &  _scene_lights,
std::vector< geo::Shape * > &  _scene_objects
)
inline

Default constructor for the parser.

Parameters
[in]_image_nameThe final rendered image will be named [_image_name].ppm.
[in]_text_tileTextfile to read from, scene file.
[in]_widthWidth of the image.
[in]_heightHeight of the image.
[in]_camPosXCamera position vector, X component.
[in]_camPosYCamera position vector, Y component.
[in]_camPosZCamera position vector, Z component.
[in]_lookAtXAim vector for the camera, X component.
[in]_lookAtYAim vector for the camera, Y component.
[in]_lookAtZAim vector for the camera, Z component.
[in]_max_depthMaximum number of stack frames for the recursive tracing function.
[in]_anti_aliasingAntialiasing factor, this is the number of subdivisions for each pixel.
[in]_scene_lightsPlaceholder for all the lights that are read. Passed to Renderer in main function.
[in]_scene_objectsPlaceholder for all the objects that are read. Passed to Renderer in main function.

Definition at line 48 of file Parser.h.

References parseLights(), and parseObjects().

62  {
63  typedef boost::tokenizer<boost::char_separator<char> > tokenizer;
64  boost::char_separator<char> quote{"\""};
65
66  std::string text;
67  std::ifstream sceneFile(_text_file);
68
69  sceneFile.seekg(0, std::ios::end);
70  text.reserve(sceneFile.tellg());
71  sceneFile.seekg(0, std::ios::beg);
72
73  text.assign((std::istreambuf_iterator<char>(sceneFile)), std::istreambuf_iterator<char>());
74
75  tokenizer tok{text,quote};
76  tokenizer::iterator it = tok.begin();
77  std::string tmp;
78
79  std::cout << "Parsing filename...\n"; ++it;
80
81  _image_name = *it;
82
83  std::cout << "OK! Filename: " << _image_name << std::endl; ++it; ++it;
84  std::cout << "Parsing file dimensions...\n";
85
86  tmp = *it; _width = atoi(tmp.c_str()); ++it; ++it; // WIDTH parsed
87  tmp = *it; _height = atoi(tmp.c_str()); // HEIGHT parsed
88
89  std::cout << "OK! " << _width << "x" << _height << " image specified.\n";
90
91  std::cout << "Parsing camera...\n"; ++it; ++it;
92  tmp = *it; _camPosX = atof(tmp.c_str()); ++it; ++it; // camPosX parsed
93  tmp = *it; _camPosY = atof(tmp.c_str()); ++it; ++it; // camPosY parsed
94  tmp = *it; _camPosZ = atof(tmp.c_str()); ++it; ++it; // camPosZ parsed
95  tmp = *it; _lookAtX = atof(tmp.c_str()); ++it; ++it; // lookAtX parsed
96  tmp = *it; _lookAtY = atof(tmp.c_str()); ++it; ++it; // lookAtY parsed
97  tmp = *it; _lookAtZ = atof(tmp.c_str()); // lookAtZ parsed
98
99  std::cout << "OK! Camera parsed with pos["<<_camPosX <<","<<_camPosY<<","<<_camPosZ<<"] and lookup["<<_lookAtX<<","
100  <<_lookAtY<<","<<_lookAtZ<<"]\n"; ++it; ++it;
101
102  tmp = *it; _max_depth = atoi(tmp.c_str()); ++it; ++it; // max_depth parsed
103  tmp = *it; _anti_aliasing = atoi(tmp.c_str()); ++it; ++it; // anti_aliasing parsed
104
105  std::cout << "Parsing lights...\n";
106  parseLights(text, _scene_lights);
107
108  std::cout << "Parsing objects...\n";
109  parseObjects(text, _scene_objects);
110  }
Parser::parseLights
void parseLights(std::string &_text, std::vector< Light * > &_scene_lights)
Read objects snippet of text and push elements to the object vector on the go.
Definition: Parser.h:152
Parser::parseObjects
void parseObjects(std::string &_text, std::vector< geo::Shape * > &_scene_objects)
Read objects snippet of text and push elements to the object vector on the go.
Definition: Parser.h:120

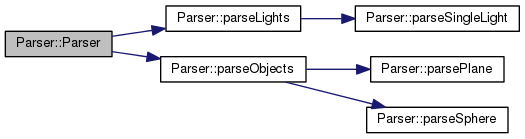

Here is the call graph for this function:

Parser::~Parser ( )
inline

Default destructor for the parser.

Definition at line 114 of file Parser.h.

114 {}

Member Function Documentation

void Parser::parseLights ( std::string &  _text,
std::vector< Light * > &  _scene_lights
)
inline

Read objects snippet of text and push elements to the object vector on the go.

Parameters
[in]_textPiece of text to read from. In this case from dollar sign to dollar sign –> $[...]$
[in]_scene_lightsPlaceholder for all the objects that are read. Passed to Renderer in main function.

Definition at line 152 of file Parser.h.

References parseSingleLight().

153  {
154  typedef boost::tokenizer<boost::char_separator<char> > tokenizer;
155  boost::char_separator<char> plus{"+"};
156  tokenizer tok{_text,plus};
157  tokenizer::iterator it = tok.begin();
158  ++it;
159
160  std::string tmp;
161
162  while(it != tok.end())
163  {
164  tmp = *it;
165  if (tmp.at(0) == '}') break;
166  parseSingleLight(tmp, _scene_lights);
167  ++it;
168  }
169  }
Parser::parseSingleLight
void parseSingleLight(std::string &_text_light, std::vector< Light * > &_scene_lights)
Read the text line that defines a light and push it into the vector container.
Definition: Parser.h:175

Here is the call graph for this function:

Here is the caller graph for this function:

void Parser::parseObjects ( std::string &  _text,
std::vector< geo::Shape * > &  _scene_objects
)
inline

Read objects snippet of text and push elements to the object vector on the go.

Parameters
[in]_textPiece of text to read from. In this case from plus sign to plus sign –> +[...]+
[in]_scene_objectsPlaceholder for all the objects that are read. Passed to Renderer in main function.

Definition at line 120 of file Parser.h.

References parsePlane(), and parseSphere().

121  {
122  typedef boost::tokenizer<boost::char_separator<char> > tokenizer;
123  boost::char_separator<char> dollar{"$"};
124  tokenizer tok{_text,dollar};
125  tokenizer::iterator it = tok.begin();
126  it++;
127
128  std::string tmp;
129
130  while(it != tok.end())
131  {
132  tmp = *it;
133  if (tmp.at(0) == '}') break;
134  if (tmp.at(0) == 'P')
135  {
136  // parse plane
137  parsePlane(tmp,_scene_objects);
138  }
139  else if (tmp.at(0) == 'S')
140  {
141  // parse sphere
142  parseSphere(tmp,_scene_objects);
143  }
144  ++it;
145  }
146  }
Parser::parsePlane
void parsePlane(std::string &_text, std::vector< geo::Shape * > &_scene_objects)
Read the text line that defines a plane and push it into the vector container.
Definition: Parser.h:212
Parser::parseSphere
void parseSphere(std::string &_text, std::vector< geo::Shape * > &_scene_objects)
Read the text line that defines a sphere and push it into the vector container.
Definition: Parser.h:297

Here is the call graph for this function:

Here is the caller graph for this function:

void Parser::parsePlane ( std::string &  _text,
std::vector< geo::Shape * > &  _scene_objects
)
inline

Read the text line that defines a plane and push it into the vector container.

Parameters
[in]_textThe line of code that defines a plane.
[in]_scene_objectsPlaceholder for all the objects that are read. Passed to Renderer in main function.

Definition at line 212 of file Parser.h.

213  {
214  typedef boost::tokenizer<boost::char_separator<char> > tokenizer;
215  boost::char_separator<char> space{" "};
216  tokenizer tok{_text,space};
217  tokenizer::iterator it = tok.begin();
218  ++it;
219
220  std::string tmp;
221  float nX, nY, nZ;
222  float distance;
223
224  std::string plane_name = *it; it++;
225
226  tmp = *it; distance = atof(tmp.c_str()); it++;it++; // distance
227  tmp = *it; nX = atof(tmp.c_str()); it++; // normal x component
228  tmp = *it; nY = atof(tmp.c_str()); it++; // normal y component
229  tmp = *it; nZ = atof(tmp.c_str()); it++;it++; // normal z component
230  tmp = *it;
231  if (tmp == "@checker")
232  {
233  float col1_r, col1_g, col1_b, col2_r, col2_g, col2_b; it++;it++;
234
235  tmp = *it; col1_r = atof(tmp.c_str());it++; // colour1 r
236  tmp = *it; col1_g = atof(tmp.c_str());it++; // colour1 g
237  tmp = *it; col1_b = atof(tmp.c_str());it++; it++; it++; // colour1 b
238  tmp = *it; col2_r = atof(tmp.c_str());it++; // colour2 r
239  tmp = *it; col2_g = atof(tmp.c_str());it++; // colour2 g
240  tmp = *it; col2_b = atof(tmp.c_str());it++; it++; // colour2 b
241  tmp = *it;
242
243  if (tmp == "@specularHardness")
244  {
245  it++;
246  float specularHardness;
247  tmp = *it; specularHardness = atof(tmp.c_str()); // specular hardness
248
249  geo::Shape* plane = new geo::Plane(distance,ngl::Vec3(nX,nY,nZ),ngl::Colour(col1_r,col1_g,col1_b,1), ngl::Colour(col2_r,col2_g,col2_b,1));
250  plane->getMaterial()->m_spec_hardness = specularHardness;
251  _scene_objects.push_back(plane);
252
253  std::cout << "OK! Plane " << plane_name << " has been parsed successfully.\n";
254  }
255  else
256  {
257  geo::Shape* plane = new geo::Plane(distance,ngl::Vec3(nX,nY,nZ),ngl::Colour(col1_r,col1_g,col1_b,1), ngl::Colour(col2_r,col2_g,col2_b,1));
258  _scene_objects.push_back(plane);
259
260  std::cout << "OK! Plane " << plane_name << " has been parsed successfully.\n";
261  }
262  }
263  else
264  {
265  float col_r, col_g, col_b;
266  it++;
267  tmp = *it; col_r = atof(tmp.c_str()); it++; // colour1 r
268  tmp = *it; col_g = atof(tmp.c_str()); it++; // colour1 g
269  tmp = *it; col_b = atof(tmp.c_str()); it++; it++; // colour1 b
270  tmp = *it;
271
272  if(tmp == "@specularHardness")
273  {
274  it++;
275  float specularHardness;
276  tmp = *it; specularHardness = atof(tmp.c_str()); // specular hardness
277
278  geo::Shape* plane = new geo::Plane(distance,ngl::Vec3(nX,nY,nZ),ngl::Colour(col_r,col_g,col_b,1));
279  plane->getMaterial()->m_spec_hardness = specularHardness;
280  _scene_objects.push_back(plane);
281
282  std::cout << "OK! Plane " << plane_name << " has been parsed successfully.\n";
283  }
284  else
285  {
286  geo::Shape* plane = new geo::Plane(distance,ngl::Vec3(nX,nY,nZ),ngl::Colour(col_r,col_g,col_b,1));
287  _scene_objects.push_back(plane);
288  std::cout << "OK! Plane " << plane_name << " has been parsed successfully.\n";
289  }
290  }
291  }
geo::Plane
Inherits from shape. Implements functionability for plane shape and its materials. and the ray-plane intersections algorithms.
Definition: Plane.h:22
geo::Shape
Semi abstract class with virtual methods that holds all the calls for getting intersections, getting normals, also for specifying the properties of the material that will be hold by the Material member of this class.
Definition: Shape.h:21

Here is the caller graph for this function:

void Parser::parseSingleLight ( std::string &  _text_light,
std::vector< Light * > &  _scene_lights
)
inline

Read the text line that defines a light and push it into the vector container.

Parameters
[in]_text_lightThe line of code that defines a light.
[in]_scene_lightsPlaceholder for all the lights that are read. Passed to Renderer in main function.

Definition at line 175 of file Parser.h.

176  {
177  typedef boost::tokenizer<boost::char_separator<char> > tokenizer;
178  boost::char_separator<char> space{" "};
179  tokenizer tok{_text_light,space};
180  tokenizer::iterator it = tok.begin();
181  std::string tmp;
182  std::string light_name;
183
184  ngl::Vec3 position;
185  ngl::Colour diffuse_col, specular_col;
186  float diff_int, spec_int, falloff;
187
188  light_name = *it; it++;it++;
189
190  tmp = *it; position.m_x = atof(tmp.c_str()); it++; // light x position
191  tmp = *it; position.m_y = atof(tmp.c_str()); it++; // light y position
192  tmp = *it; position.m_z = atof(tmp.c_str()); it++;it++;it++; // light z position
193  tmp = *it; diffuse_col.m_r = atof(tmp.c_str()); it++; // light r diffuse value
194  tmp = *it; diffuse_col.m_g = atof(tmp.c_str()); it++; // light g diffuse value
195  tmp = *it; diffuse_col.m_b = atof(tmp.c_str()); it++;it++;it++; // light b diffuse value
196  tmp = *it; specular_col.m_r = atof(tmp.c_str()); it++; // light r specular value
197  tmp = *it; specular_col.m_g = atof(tmp.c_str()); it++; // light g specular value
198  tmp = *it; specular_col.m_b = atof(tmp.c_str()); it++;it++; // light b specular value
199  tmp = *it; diff_int = atof(tmp.c_str()); it++; // light diffuse intensity
200  tmp = *it; spec_int = atof(tmp.c_str()); it++; // light specular intensity
201  tmp = *it; falloff = atof(tmp.c_str()); // light falloff
202
203  PointLight* light = new PointLight(position, diffuse_col, specular_col, diff_int, spec_int, falloff);
204  _scene_lights.push_back(light);
205  std::cout << "OK! Light with name " << light_name << " has been parsed.\n";
206  }
PointLight
Point light constructor.
Definition: Light.h:82

Here is the caller graph for this function:

void Parser::parseSphere ( std::string &  _text,
std::vector< geo::Shape * > &  _scene_objects
)
inline

Read the text line that defines a sphere and push it into the vector container.

Parameters
[in]_textThe line of code that defines an object.
[in]_scene_objectsPlaceholder for all the objects that are read. Passed to Renderer in main function.

Definition at line 297 of file Parser.h.

298  {
299  typedef boost::tokenizer<boost::char_separator<char> > tokenizer;
300  boost::char_separator<char> space{" "};
301  tokenizer tok{_text,space};
302  tokenizer::iterator it = tok.begin();
303  ++it;
304
305  std::string tmp;
306
307  float posX, posY, posZ;
308  float colX, colY, colZ;
309  float radius;
310
311  std::string sphere_name = *it;
312  it++;it++;
313
314  tmp = *it; posX = atof(tmp.c_str()); it++; // sphere center x
315  tmp = *it; posY = atof(tmp.c_str()); it++; // sphere center y
316  tmp = *it; posZ = atof(tmp.c_str()); it++;it++; // sphere center z
317  tmp = *it; radius = atof(tmp.c_str()); it++;it++; // sphere radius
318  tmp = *it; colX = atof(tmp.c_str()); it++; // sphere colour r
319  tmp = *it; colY = atof(tmp.c_str()); it++; // sphere colour g
320  tmp = *it; colZ = atof(tmp.c_str()); it++;it++; // sphere colour b
321  tmp = *it;
322
323  if(tmp == "@specularHardness") {
324  it++;
325
326  tmp = *it;
327  float specularHardness = atof(tmp.c_str());
328
329  geo::Shape* sphere = new geo::Sphere(ngl::Vec3(posX,posY,posZ),radius, ngl::Colour(colX,colY,colZ,1));
330  sphere->getMaterial()->m_spec_hardness = specularHardness;
331  _scene_objects.push_back(sphere);
332
333  std::cout << "OK! Sphere " << sphere_name << " has been parsed successfully.\n";
334  }
335  else if(tmp == "@reflective") {
336  it++;
337  tmp = *it; float reflection_ratio = atof(tmp.c_str()) / 100.0f; // reflection amount
338
339  geo::Shape* sphere = new geo::Sphere(ngl::Vec3(posX,posY,posZ),radius, ngl::Colour(colX,colY,colZ,1));
340  sphere->hasReflection(reflection_ratio, 1.0f-reflection_ratio);
341  _scene_objects.push_back(sphere);
342
343  std::cout << "OK! Sphere " << sphere_name << " has been parsed successfully.\n";
344  }
345  else if(tmp == "@refractive") {
346  it++;
347  tmp = *it; float ior = atof(tmp.c_str()); it++; // index of refraction
348  tmp = *it; float refraction_ratio = atof(tmp.c_str()) / 100.0f; // refraction amount
349
350  geo::Shape* sphere = new geo::Sphere(ngl::Vec3(posX,posY,posZ),radius, ngl::Colour(colX,colY,colZ,1));
351  sphere->hasRefraction(ior, refraction_ratio, 1.0f-refraction_ratio);
352  _scene_objects.push_back(sphere);
353
354  std::cout << "OK! Sphere " << sphere_name << " has been parsed successfully.\n";
355  }
356  else {
357  geo::Shape* sphere = new geo::Sphere(ngl::Vec3(posX,posY,posZ),radius, ngl::Colour(colX,colY,colZ,1));
358  _scene_objects.push_back(sphere);
359  }
360  }
geo::Sphere
Class that hold an implicit definition of a sphere through center and radius parameters. It also implements a method for finding intersections.
Definition: Sphere.h:23
geo::Shape
Semi abstract class with virtual methods that holds all the calls for getting intersections, getting normals, also for specifying the properties of the material that will be hold by the Material member of this class.
Definition: Shape.h:21

Here is the caller graph for this function:

The documentation for this class was generated from the following file:
Generated by   doxygen 1.8.9.1
