geo::Plane Class Reference

Inherits from shape. Implements functionability for plane shape and its materials. and the ray-plane intersections algorithms. More...

#include <Plane.h>

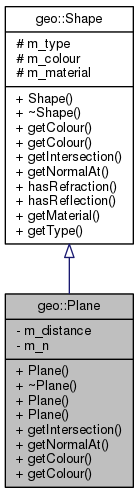

Inheritance diagram for geo::Plane:

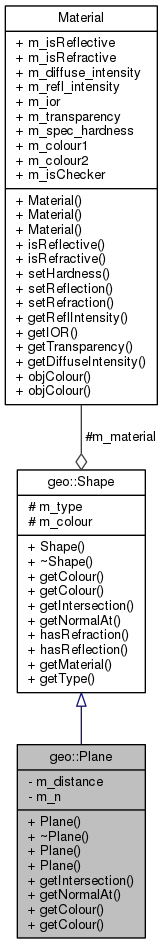

Collaboration diagram for geo::Plane:

Public Member Functions
	Plane ()
	Default constructor for the plane. If no arguments passed it will be initialised with distance(5) n(1,1,1) More...
	~Plane ()
	Default destructor. More...
	Plane (float _distance, ngl::Vec3 _n, ngl::Colour _c)
	This constructor reads some arguments and pass them to the private interface. More...
	Plane (float _distance, ngl::Vec3 _n, ngl::Colour _c1, ngl::Colour _c2)
	This constructor reads some arguments and pass them to the private interface. For checkerboard planes. More...
virtual float	getIntersection (geo::Ray &_ray)
	Virtual method that implements the ray-plane intersection. More...
virtual ngl::Vec3	getNormalAt (ngl::Vec3 _p)
	Simple getter that returns the normal of the plane. More...
virtual ngl::Colour	getColour ()
	Returns the colour for plain objects, in other words for non-checkerboard planes. More...
virtual ngl::Colour	getColour (ngl::Vec3 &_isect)
	Returns the colour for checker-board planes. This will imply passing an intersection point in world space so that we can make the right calculations to see whether we must return the colour1 or colour2. More...
Public Member Functions inherited from geo::Shape
	Shape ()
	Default constructor. More...
	~Shape ()
	Frees any memory grabbed from the heap. More...
void	hasRefraction (float _ior, float _transparency, float _diffuse_intensity)
	Sets parameters related to refraction, this will be given to the Material class. More...
void	hasReflection (float _refl_intensity, float _diffuse_intensity)
	Sets reflection attributes. More...
Material *	getMaterial ()
	Returns the material attached to a shape object. This is useful for querying or changing private interface, that's why it is not const. More...
char	getType ()
	Derived classes will be Spheres or Planes, I will store the type of geometry in this attribute. More...

Private Attributes
float	m_distance
	Distance from the origin the plane is located at. More...
ngl::Vec3	m_n
	Normal of the plane. More...

Additional Inherited Members
Protected Attributes inherited from geo::Shape
char	m_type
	Type of geometric object it is. More...
ngl::Colour	m_colour
	Colour of the shape. More...
Material *	m_material
	Material attached to the Shape object. More...

Detailed Description

Inherits from shape. Implements functionability for plane shape and its materials. and the ray-plane intersections algorithms.

Author

Ramon Blanquer

Todo:

Implement new ways to instanciate a plane, ie specifying three points, or one point and a normal.

Definition at line 22 of file Plane.h.

Constructor & Destructor Documentation

geo::Plane::Plane

(

)

Default constructor for the plane. If no arguments passed it will be initialised with distance(5) n(1,1,1)

Definition at line 11 of file Plane.cpp.

References geo::Shape::m_colour, geo::Shape::m_material, and geo::Shape::m_type.

             : m_distance(5.0f), m_n(ngl::Vec3(1,1,1))
{
  m_colour = ngl::Colour(1,0,0);
  m_type='p';
  Material* mat = new Material(ngl::Colour(1,1,1,1), ngl::Colour(0,0,0,1));
  m_material = mat;
}

geo::Plane::~Plane

(

)

Default destructor.

geo::Plane::Plane	(	float	_distance,
		ngl::Vec3	_n,
		ngl::Colour	_c
	)

This constructor reads some arguments and pass them to the private interface.

Parameters

[in]	_distance	Distance from the origin the plane is located at.
[in]	_n	Normal of the plane.
[in]	_c	Plain colour of the plane.

Definition at line 19 of file Plane.cpp.

References geo::Shape::m_colour, m_distance, geo::Shape::m_material, m_n, and geo::Shape::m_type.

{
  m_distance = _distance;
  m_colour = _c;
  m_type='p';

  Material* mat = new Material(_c);
  m_material = mat;

  if(_n.length() > 1.01 || _n.length() < 0.99)
  {
    _n.normalize();
    m_n = _n;
  }
  else
  {
    m_n = _n;
  }
}

geo::Plane::Plane	(	float	_distance,
		ngl::Vec3	_n,
		ngl::Colour	_c1,
		ngl::Colour	_c2
	)

This constructor reads some arguments and pass them to the private interface. For checkerboard planes.

Parameters

[in]	_distance	Distance from the origin the plane is located at.
[in]	_n	Primary colour of the checkerboard.
[in]	_c1	Secondary colour of the checkerboard.

Definition at line 39 of file Plane.cpp.

References geo::Shape::m_colour, m_distance, geo::Shape::m_material, m_n, and geo::Shape::m_type.

{
  m_distance = _distance;
  m_colour = _c1;
  m_type='p';

  Material* mat = new Material(_c1, _c2);
  m_material = mat;

  if(_n.length() > 1.01 || _n.length() < 0.99)
  {
    _n.normalize();
    m_n = _n;
  }
  else
  {
    m_n = _n;
  }
}

Member Function Documentation

ngl::Colour geo::Plane::getColour ( )

virtual

Returns the colour for plain objects, in other words for non-checkerboard planes.

Returns

The colour of the plane

Implements geo::Shape.

Definition at line 82 of file Plane.cpp.

References geo::Shape::m_material, and Material::objColour().

{
  return m_material->objColour();
}

Here is the call graph for this function:

ngl::Colour geo::Plane::getColour ( ngl::Vec3 &  _isect )

virtual

Returns the colour for checker-board planes. This will imply passing an intersection point in world space so that we can make the right calculations to see whether we must return the colour1 or colour2.

Parameters

[in]

_isect

Position in world space of the intersecting point.

Returns

The colour of the plane at the intersection point

Implements geo::Shape.

Definition at line 87 of file Plane.cpp.

References Material::m_isChecker, geo::Shape::m_material, and Material::objColour().

{
  if (m_material->m_isChecker)
  {
    return m_material->objColour(_isect);
  }
  else
  {
    return m_material->objColour();
  }
}

Here is the call graph for this function:

float geo::Plane::getIntersection ( geo::Ray &  _ray )

virtual

Virtual method that implements the ray-plane intersection.

Parameters

[in]

_ray

Ray that will be used to solve the equation for finding the "t" parameter of the ray that satisfies that this point is shared by both ray and plane aka intersection point.

Returns

The **'t'** parameter from the R = O + t * d equation form of the line, thus the intersection point.

Implements geo::Shape.

Definition at line 59 of file Plane.cpp.

References geo::Ray::getDirection(), geo::Ray::getOrigin(), m_distance, and m_n.

{
  ngl::Vec3 ray_dir = _ray.getDirection();

  float a = ray_dir.dot(m_n);

  if(a == 0)
  {
    // ray is paralel
    return -1;
  }
  else
  {
    double b = m_n.dot(_ray.getOrigin() + (-(m_distance*m_n)));
    return -1*b/a;
  }
}

Here is the call graph for this function:

ngl::Vec3 geo::Plane::getNormalAt ( ngl::Vec3  _p )

virtual

Simple getter that returns the normal of the plane.

Returns

The normal of the plane

Implements geo::Shape.

Definition at line 77 of file Plane.cpp.

References m_n.

{
  return m_n;
}

Member Data Documentation

float geo::Plane::m_distance

private

Distance from the origin the plane is located at.

Definition at line 76 of file Plane.h.

ngl::Vec3 geo::Plane::m_n

private

Normal of the plane.

Definition at line 80 of file Plane.h.

---

The documentation for this class was generated from the following files:

• FinalSubmission/include/Plane.h
• FinalSubmission/src/Plane.cpp
