Class that hold an implicit definition of a sphere through center and radius parameters. It also implements a method for finding intersections. More...

#include <Sphere.h>

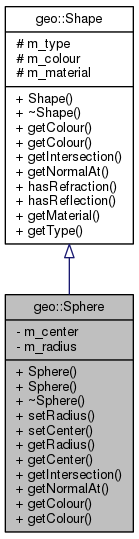

Inheritance diagram for geo::Sphere:

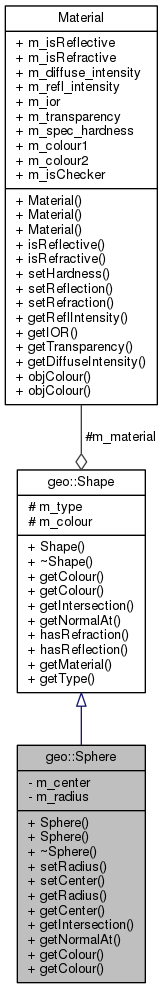

Collaboration diagram for geo::Sphere:

Public Member Functions
	Sphere ()
	Sphere constructor, by default it will instanciate a `1` unit radius sphere in the origin `(0,0,0)`. More...

	Sphere (ngl::Vec3 _center, float _radius, ngl::Colour _colour)
	Sphere ctor using a radius and a center. More...

	~Sphere ()
	Destructor so that all memory is freed. More...

void	setRadius (float _radius)
	Setter for the radius. More...

void	setCenter (ngl::Vec3 _center)
	Setter for the center. More...

float	getRadius () const
	Returns radius of a sphere. More...

ngl::Vec3	getCenter () const
	Returns center of a sphere. More...

virtual float	getIntersection (geo::Ray &_ray)
	Calculates the intersection of the passed ray with the sphere according to the parametric form of a ray: R(t) = P + t * (Q - P) More...

virtual ngl::Vec3	getNormalAt (ngl::Vec3 _p)
	Calculates what the normal is at a given point of a sphere. It doesn't check whether it is on the surface or not because that point will be passed through an intersection which we are sure about. More...

virtual ngl::Colour	getColour ()
	Gets colour of the sphere through its material object. More...

virtual ngl::Colour	getColour (ngl::Vec3 &_isect)
	Gets colour of the sphere through its material object. More...

Public Member Functions inherited from geo::Shape
	Shape ()
	Default constructor. More...

	~Shape ()
	Frees any memory grabbed from the heap. More...

void	hasRefraction (float _ior, float _transparency, float _diffuse_intensity)
	Sets parameters related to refraction, this will be given to the Material class. More...

void	hasReflection (float _refl_intensity, float _diffuse_intensity)
	Sets reflection attributes. More...

Material *	getMaterial ()
	Returns the material attached to a shape object. This is useful for querying or changing private interface, that's why it is not const. More...

char	getType ()
	Derived classes will be Spheres or Planes, I will store the type of geometry in this attribute. More...

Private Attributes
ngl::Vec3	m_center
	Center of the sphere, in world space coordinates. More...

double	m_radius
	Radius of the sphere. More...

Additional Inherited Members
Protected Attributes inherited from geo::Shape
char	m_type
	Type of geometric object it is. More...

ngl::Colour	m_colour
	Colour of the shape. More...

Material *	m_material
	Material attached to the Shape object. More...

Detailed Description

Class that hold an implicit definition of a sphere through center and radius parameters. It also implements a method for finding intersections.

Author: Ramon Blanquer

Todo:: Implement colour on the sphere.

Definition at line 23 of file Sphere.h.

Constructor & Destructor Documentation

geo::Sphere::Sphere ( )

inline

Sphere constructor, by default it will instanciate a 1 unit radius sphere in the origin (0,0,0).

Definition at line 29 of file Sphere.h.

References geo::Shape::m_colour, geo::Shape::m_material, and geo::Shape::m_type.

            : m_center(ngl::Vec3(1,1,1)), m_radius(2.0f)
   {
     m_type = 's';
     m_colour = ngl::Colour(1,1,0,1);
     Material* mat = new Material(ngl::Colour(1,1,0,0));
     m_material = mat;
   }

geo::Sphere::Sphere	(	ngl::Vec3	_center,
		float	_radius,
		ngl::Colour	_colour
	)

inline

Sphere ctor using a radius and a center.

Parameters

[in]	_center	The position in where the sphere is positioned.
[in]	_radius	The radius in scene units of the sphere object.
[in]	_colour	The colour of the Sphere

Definition at line 42 of file Sphere.h.

References geo::Shape::m_colour, geo::Shape::m_material, and geo::Shape::m_type.

                                                              : m_center(_center), m_radius(_radius)
    {
      m_type = 's';
      m_colour = _colour;
      Material* mat = new Material(_colour);
      m_material = mat;
    }

geo::Sphere::~Sphere ( )

inline

Destructor so that all memory is freed.

Definition at line 52 of file Sphere.h.

52 {}

Member Function Documentation

ngl::Vec3 geo::Sphere::getCenter ( ) const

inline

Returns center of a sphere.

Returns: The center of a sphere.

Definition at line 76 of file Sphere.h.

References m_center.

76 {return m_center;}

geo::Sphere::m_center

ngl::Vec3 m_center

Center of the sphere, in world space coordinates.

Definition: Sphere.h:110

Here is the caller graph for this function:

virtual ngl::Colour geo::Sphere::getColour ( )

inlinevirtual

Gets colour of the sphere through its material object.

Parameters

[in] _p The position in the surface of the spehere where we calculate the normal.

Returns: The colour of the sphere

Implements geo::Shape.

Definition at line 98 of file Sphere.h.

References Material::m_colour1, and geo::Shape::m_material.

98 {return m_material->m_colour1;}

geo::Shape::m_material

Material * m_material

Material attached to the Shape object.

Definition: Shape.h:96

Material::m_colour1

ngl::Colour m_colour1

Colour of the object.

Definition: Material.h:121

virtual ngl::Colour geo::Sphere::getColour ( ngl::Vec3 & _isect )

inlinevirtual

Gets colour of the sphere through its material object.

Parameters

[in] _p The position in the surface of the spehere where we calculate the normal.

Returns: The colour of the sphere

Implements geo::Shape.

Definition at line 104 of file Sphere.h.

References Material::m_colour1, and geo::Shape::m_material.

104 {return m_material->m_colour1;}

geo::Shape::m_material

Material * m_material

Material attached to the Shape object.

Definition: Shape.h:96

Material::m_colour1

ngl::Colour m_colour1

Colour of the object.

Definition: Material.h:121

float geo::Sphere::getIntersection ( geo::Ray & _ray )

virtual

Calculates the intersection of the passed ray with the sphere according to the parametric form of a ray: R(t) = P + t * (Q - P)

Parameters

[in] _ray

Returns: The distance from the origin of the ray where it intersects the sphere.

Implements geo::Shape.

Definition at line 12 of file Sphere.cpp.

References getCenter(), geo::Ray::getDirection(), geo::Ray::getOrigin(), and getRadius().

   {
     float ray_origin_x = ray.getOrigin().m_x;
     float ray_origin_y = ray.getOrigin().m_y;
     float ray_origin_z = ray.getOrigin().m_z;

     float ray_direction_x = ray.getDirection().m_x;
     float ray_direction_y = ray.getDirection().m_y;
     float ray_direction_z = ray.getDirection().m_z;

     float sphere_center_x = this->getCenter().m_x;
     float sphere_center_y = this->getCenter().m_y;
     float sphere_center_z = this->getCenter().m_z;

     //float a = 1;
     float b = (2*(ray_origin_x - sphere_center_x)*ray_direction_x)
             + (2*(ray_origin_y - sphere_center_y)*ray_direction_y)
             + (2*(ray_origin_z - sphere_center_z)*ray_direction_z);
     float c = pow(ray_origin_x - sphere_center_x, 2)
             + pow(ray_origin_y - sphere_center_y, 2)
             + pow(ray_origin_z - sphere_center_z, 2)
             - (this->getRadius()*this->getRadius());
     float discriminant = b*b - 4*c;

     if(discriminant > 0)
     {
       //ray intersects sphere

       // first root
       float root_1 = ((-1*b - sqrt(discriminant))/2) - 0.000001;

       if (root_1 > 0)
       {
         return root_1;
       }

       else
       {
         // second root is the smallest positive root
         float root_2 = ((sqrt(discriminant)-b)/2) - 0.000001;
         return root_2;
       }
     }
     else
     {
       return -1;
     }
   }

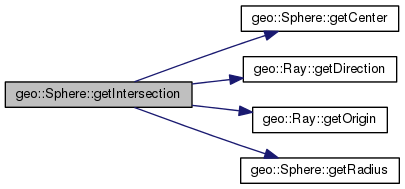

Here is the call graph for this function:

ngl::Vec3 geo::Sphere::getNormalAt ( ngl::Vec3 _p )

virtual

Calculates what the normal is at a given point of a sphere. It doesn't check whether it is on the surface or not because that point will be passed through an intersection which we are sure about.

Parameters

[in] _p The position in the surface of the spehere where we calculate the normal.

Returns: The normal of the sphere at a given point.

Implements geo::Shape.

Definition at line 61 of file Sphere.cpp.

References m_center.

   {
     ngl::Vec3 normal;
     normal = _p - m_center;
     normal.normalize();
     return normal;
   }

float geo::Sphere::getRadius ( ) const

inline

Returns radius of a sphere.

Returns: The radius of a sphere.

Definition at line 71 of file Sphere.h.

References m_radius.

71 {return m_radius;}

geo::Sphere::m_radius

double m_radius

Radius of the sphere.

Definition: Sphere.h:114

Here is the caller graph for this function:

void geo::Sphere::setCenter ( ngl::Vec3 _center )

inline

Setter for the center.

Parameters

[in] _center Center of the sphere.

Definition at line 64 of file Sphere.h.

References m_center.

64 {m_center = _center;}

geo::Sphere::m_center

ngl::Vec3 m_center

Center of the sphere, in world space coordinates.

Definition: Sphere.h:110

void geo::Sphere::setRadius ( float _radius )

inline

Setter for the radius.

Parameters

[in] _center The radius of the sphere.

Definition at line 59 of file Sphere.h.

References m_radius.

59 {m_radius = _radius;}

geo::Sphere::m_radius

double m_radius

Radius of the sphere.

Definition: Sphere.h:114

Member Data Documentation

ngl::Vec3 geo::Sphere::m_center

private

Center of the sphere, in world space coordinates.

Definition at line 110 of file Sphere.h.

double geo::Sphere::m_radius

private

Radius of the sphere.

Definition at line 114 of file Sphere.h.

The documentation for this class was generated from the following files:

FinalSubmission/include/Sphere.h
FinalSubmission/src/Sphere.cpp
