geo::Shape Class Reference

Semi abstract class with virtual methods that holds all the calls for getting intersections, getting normals, also for specifying the properties of the material that will be hold by the Material member of this class. More...

#include <Shape.h>

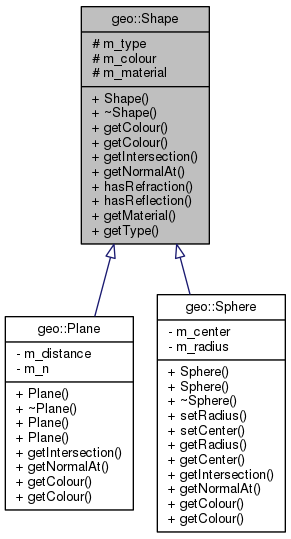

Inheritance diagram for geo::Shape:

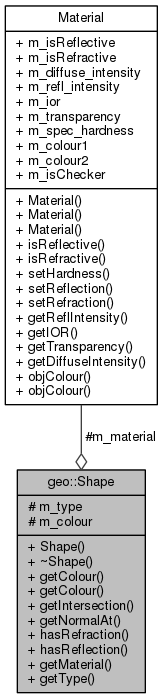

Collaboration diagram for geo::Shape:

Public Member Functions
	Shape ()
	Default constructor. More...
	~Shape ()
	Frees any memory grabbed from the heap. More...
virtual ngl::Colour	getColour ()=0
	Returs colour of a Shape object. More...
virtual ngl::Colour	getColour (ngl::Vec3 &_isect)=0
	Returns colour depending on intersection point. More...
virtual float	getIntersection (geo::Ray &_ray)=0
	Passing a ray it will calculate the intersection in the derived class, this is purely abstract method. More...
virtual ngl::Vec3	getNormalAt (ngl::Vec3 _p)=0
	Returns the normal at a given point. More...
void	hasRefraction (float _ior, float _transparency, float _diffuse_intensity)
	Sets parameters related to refraction, this will be given to the Material class. More...
void	hasReflection (float _refl_intensity, float _diffuse_intensity)
	Sets reflection attributes. More...
Material *	getMaterial ()
	Returns the material attached to a shape object. This is useful for querying or changing private interface, that's why it is not const. More...
char	getType ()
	Derived classes will be Spheres or Planes, I will store the type of geometry in this attribute. More...

Protected Attributes
char	m_type
	Type of geometric object it is. More...
ngl::Colour	m_colour
	Colour of the shape. More...
Material *	m_material
	Material attached to the Shape object. More...

Detailed Description

Semi abstract class with virtual methods that holds all the calls for getting intersections, getting normals, also for specifying the properties of the material that will be hold by the Material member of this class.

Author

Ramon Blanquer

Definition at line 21 of file Shape.h.

Constructor & Destructor Documentation

geo::Shape::Shape ( )

inline

Default constructor.

Definition at line 27 of file Shape.h.

{}

geo::Shape::~Shape ( )

inline

Frees any memory grabbed from the heap.

Definition at line 31 of file Shape.h.

References m_material.

{delete m_material;}

Member Function Documentation

virtual ngl::Colour geo::Shape::getColour ( )

pure virtual

Returs colour of a Shape object.

Returns

Colour of the Shape object

Implemented in geo::Sphere, and geo::Plane.

virtual ngl::Colour geo::Shape::getColour ( ngl::Vec3 &  _isect )

pure virtual

Returns colour depending on intersection point.

Returns

Colour of a Shape object

Implemented in geo::Sphere, and geo::Plane.

virtual float geo::Shape::getIntersection ( geo::Ray &  _ray )

pure virtual

Passing a ray it will calculate the intersection in the derived class, this is purely abstract method.

Returns

Variable (mathematically speaking) **'t'** in equation R = O + t * d.

Implemented in geo::Sphere, and geo::Plane.

Material* geo::Shape::getMaterial ( )

inline

Returns the material attached to a shape object. This is useful for querying or changing private interface, that's why it is not const.

Returns

The object associated with a Shape instance.

Definition at line 77 of file Shape.h.

References m_material.

{return m_material;}

virtual ngl::Vec3 geo::Shape::getNormalAt ( ngl::Vec3  _p )

pure virtual

Returns the normal at a given point.

Returns

Normal

Implemented in geo::Sphere, and geo::Plane.

char geo::Shape::getType ( )

inline

Derived classes will be Spheres or Planes, I will store the type of geometry in this attribute.

Returns

Whether it is a sphere or a plane, this will be expanded to other geometry in the future.

Definition at line 82 of file Shape.h.

References m_type.

{return m_type;}

void geo::Shape::hasReflection ( float  _refl_intensity, float  _diffuse_intensity  )

inline

Sets reflection attributes.

Parameters

[in]	_refl_intensity	How reflective the material is.
[in]	_diffuse_intensity	How non-reflective the material is.

Definition at line 68 of file Shape.h.

References m_material, and Material::setReflection().

  {
    m_material->setReflection(_refl_intensity, _diffuse_intensity);
  }

Here is the call graph for this function:

void geo::Shape::hasRefraction ( float  _ior, float  _transparency, float  _diffuse_intensity  )

inline

Sets parameters related to refraction, this will be given to the Material class.

Parameters

[in]	_ior	Index of refraction.
[in]	_transparency	Amount of refraction of the object.
[in]	_	diffuse_intensity This is calculated automatically, but it is the complementary of transparency, I could say this is the 'opacity'.

Definition at line 59 of file Shape.h.

References m_material, and Material::setRefraction().

  {
    m_material->setRefraction(_ior,_transparency, _diffuse_intensity);
  }

Here is the call graph for this function:

Member Data Documentation

ngl::Colour geo::Shape::m_colour

protected

Colour of the shape.

Definition at line 92 of file Shape.h.

Material* geo::Shape::m_material

protected

Material attached to the Shape object.

Definition at line 96 of file Shape.h.

char geo::Shape::m_type

protected

Type of geometric object it is.

Definition at line 88 of file Shape.h.

---

The documentation for this class was generated from the following file:

• FinalSubmission/include/Shape.h
