geo::Ray Class Reference

#include <Ray.h>

Collaboration diagram for geo::Ray:

Public Member Functions
	Ray (ngl::Vec3 _origin, ngl::Vec3 _direction)
	First ray ctor, this takes an origin and a direction and passes them directly to the class members. More...
	Ray (ngl::Vec3 _A, ngl::Vec3 _B, bool _p)
	Second ray ctor, this takes two points and creates the direction from them and takes the first as origin. More...
	~Ray ()
	Simple destructor. Frees memory. More...
void	setOrigin (ngl::Vec3 _origin)
	Setter method for the origin. More...
void	setDirection (ngl::Vec3 _direction)
	Setter method for the direction. More...
ngl::Vec3	getOrigin ()
	Getter method for the origin. More...
ngl::Vec3	getDirection ()
	Getter method for the direction. More...

Private Attributes
ngl::Vec3	m_origin
	Ray's origin class member. More...
ngl::Vec3	m_direction
	Ray's direction class member. More...

Detailed Description

Definition at line 17 of file Ray.h.

Constructor & Destructor Documentation

Ray::Ray	(	ngl::Vec3	_origin,
		ngl::Vec3	_direction
	)

First ray ctor, this takes an origin and a direction and passes them directly to the class members.

Parameters

[in]	_origin	Starting point of the ray
[in]	_direction	Vector in which the points lay on the line.

Definition at line 9 of file Ray.cpp.

References m_direction, and m_origin.

{
  m_origin = _origin;

  // check that it is unit length, if not, normalize
  if (_direction.length() > 1.1 || _direction.length() < 0.9) {_direction.normalize();}
  m_direction = _direction;
}

Ray::Ray	(	ngl::Vec3	_A,
		ngl::Vec3	_B,
		bool	_p
	)

Second ray ctor, this takes two points and creates the direction from them and takes the first as origin.

Parameters

[in]	_A	Starting point of the ray
[in]	_B	Another point which will be used to construct a vector which will act as direction for the ray.
[in]	_p	This parameter discrimines between the previous ctor because they both accept two vectors as inputs and this cannot be overloaded.

Definition at line 18 of file Ray.cpp.

References m_direction, and m_origin.

{
  m_origin = _A;

  ngl::Vec3 direction = _B - _A;
  direction.normalize();

  m_direction = direction;
}

Ray::~Ray

(

)

Simple destructor. Frees memory.

Definition at line 28 of file Ray.cpp.

{;}

Member Function Documentation

ngl::Vec3 Ray::getDirection

(

)

Getter method for the direction.

Returns

The direction of the ray.

Definition at line 44 of file Ray.cpp.

References m_direction.

{
  return m_direction;
}

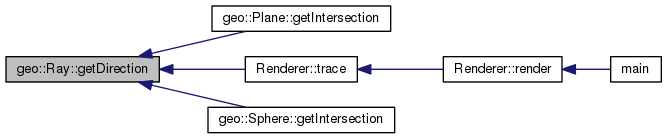

Here is the caller graph for this function:

ngl::Vec3 Ray::getOrigin

(

)

Getter method for the origin.

Returns

The origin of the ray.

Definition at line 39 of file Ray.cpp.

References m_origin.

{
  return m_origin;
}

Here is the caller graph for this function:

void Ray::setDirection

(

ngl::Vec3

_direction

)

Setter method for the direction.

Parameters

[in]

_direction

Sets the direction class member.

Definition at line 32 of file Ray.cpp.

References m_direction.

{
  // check that it is unit length, if not, normalize
  if (_direction.length() > 1.1 || _direction.length() < 0.9) {_direction.normalize();}
  m_direction = _direction;
}

void Ray::setOrigin

(

ngl::Vec3

_origin

)

Setter method for the origin.

Parameters

[in]

_origin

Sets the origin class member.

Definition at line 30 of file Ray.cpp.

References m_origin.

{m_origin = _origin;}

Member Data Documentation

ngl::Vec3 geo::Ray::m_direction

private

Ray's direction class member.

Definition at line 71 of file Ray.h.

ngl::Vec3 geo::Ray::m_origin

private

Ray's origin class member.

Definition at line 67 of file Ray.h.

---

The documentation for this class was generated from the following files:

• FinalSubmission/include/Ray.h
• FinalSubmission/src/Ray.cpp
